Wled Pcb D1 Mini

PCB for WLED with WeMos D1 Mini and SN74AHCT125N level shifter

Overview

WLED PCB for D1 Mini

A PCB for WLED with WeMos D1 Mini and SN74AHCT125N level shifter.

Recommended software: WLED

Preview

Components

• C1: Capacitor Radial 1000μF
• U1: WeMos D1 Mini
• U2: level shifter SN74AHCT125N
• R1: Resistor 330Ω

GPIO

• GPIO3 = CLK line of addressable strip
• GPIO4 = Data line of addressable strip

Gerber Files

Gerber-Files

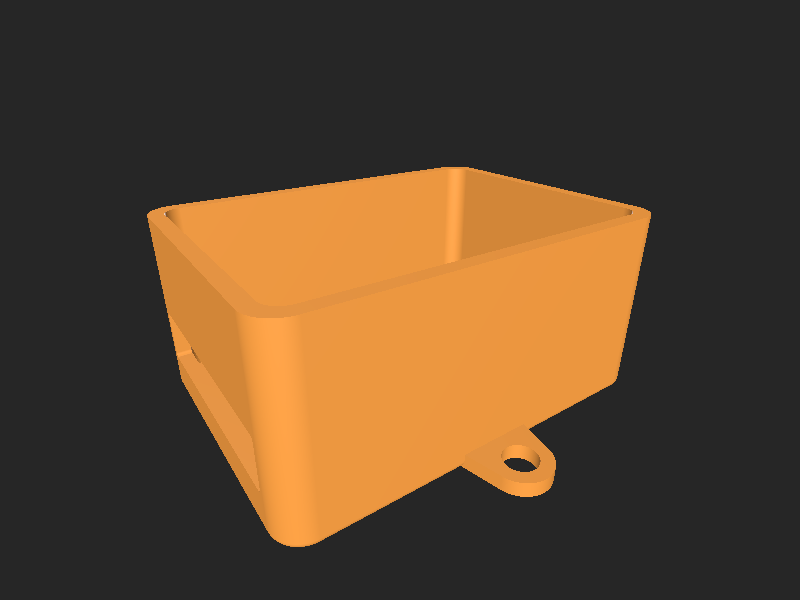

Enclosure STL-Files

STL-Files

License

The MIT License (MIT)

Copyright (c) 2021 Felix Zösch

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Files in this package

• CAD source: wled_box_V2_deckel.stl, wled_box_v2_box.stl
• Images: WLED_Controller3.png, WLED_Controller4.png
• Documents: WLED-Controller_sch.pdf

---
