A collection of readily available commercial-off-the-shelf components and 3D printed components that can be assembled into various configurations to provide mounting solutions for assistive technology.
The PVC Assistive Mounting System is a collection of readily available commercial-off-the-shelf components and 3D printed components that can be assembled into various configurations to provide mounting solutions for assistive technology.

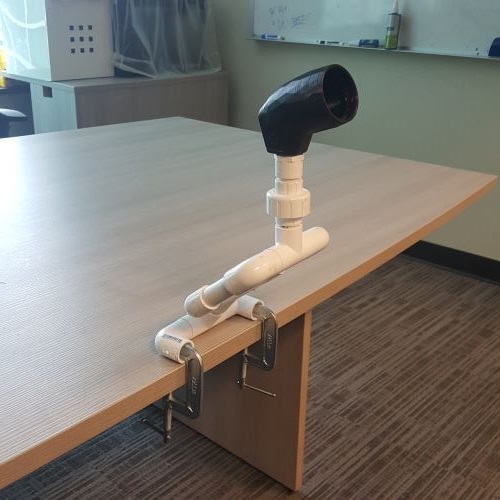

The LipSync Desk Mount provides a low cost, adjustable system to mount the LipSync Classic to a flat surface like a table or desk.

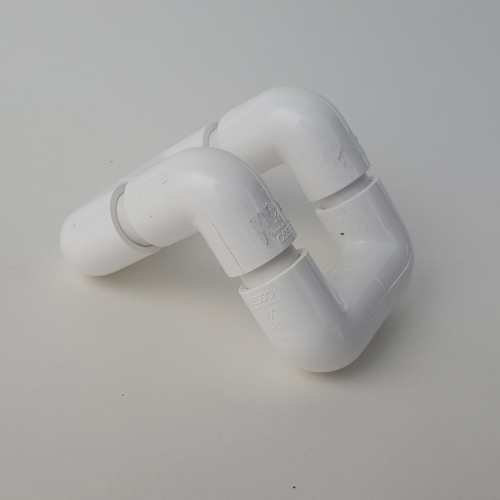

The Small Button Mount is a simple, inexpensive mounting solution to position a small button on a flat surface.
Work-in-progress

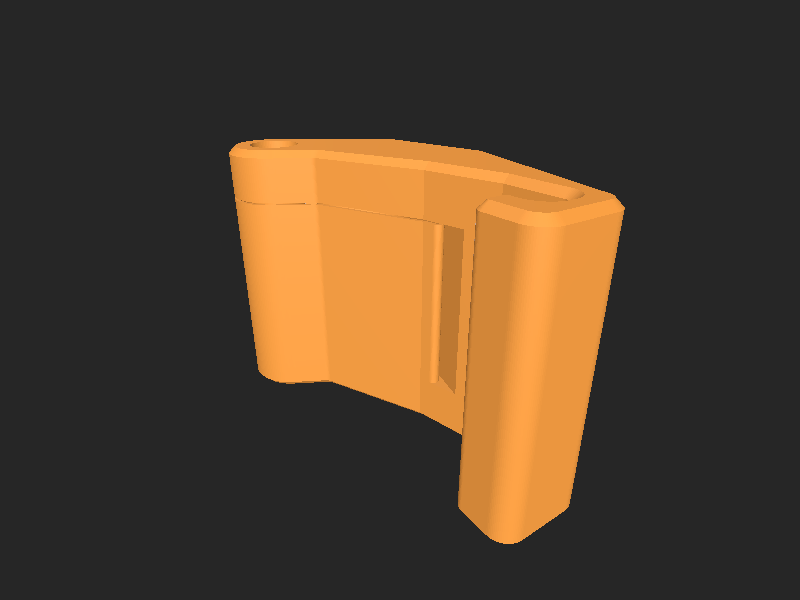

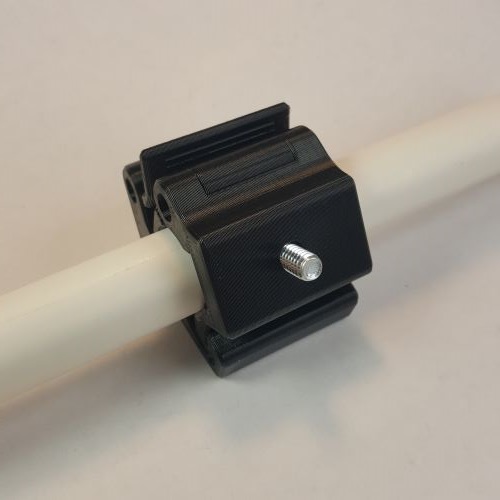

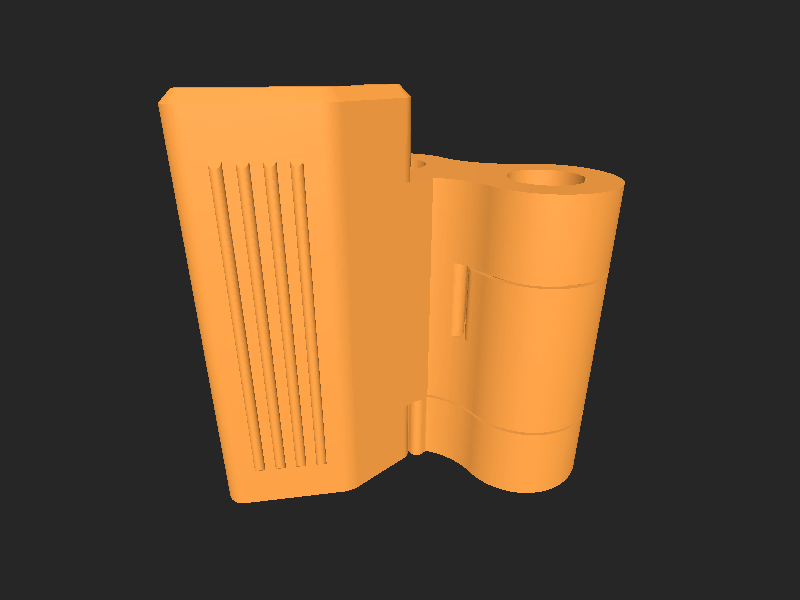

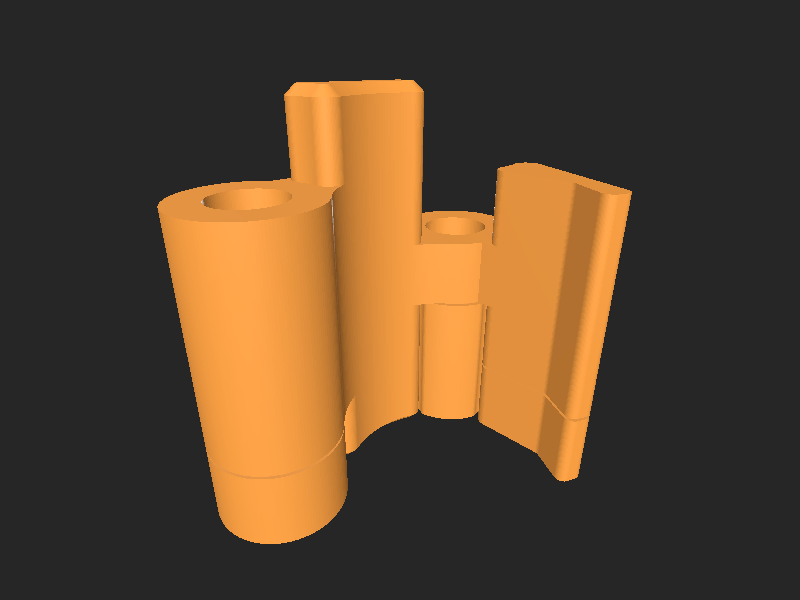

The PAMS Camera Quick Clamp is a 3D printed adapter for attaching an assistive device to a section of 1/2 inch PVC piping. The clamp has a ¼”- 20 UNC camera thread stud that is compatible with various assistive devices and/or camera mount adapters. The clamp can easily be installed, adjusted, and removed by hand.
Work-in-progress
Work-in-progress
Work-in-progress
More information for working with PVC: PVC Resources
<a rel="license" href="http://creativecommons.org/licenses/by-sa/4.0/"><img alt="Creative Commons Licence" style="border-width:0" src="https://i.creativecommons.org/l/by-sa/4.0/88x31.png" /></a><br /><span xmlns:dct="http://purl.org/dc/terms/" property="dct:title">PVC Accessible Mounting System</span> by <a xmlns:cc="http://creativecommons.org/ns#" href="www.makersmakingchange.com" property="cc:attributionName" rel="cc:attributionURL">Neil Squire</a> is licensed under a <a rel="license" href="http://creativecommons.org/licenses/by-sa/4.0/">Creative Commons Attribution-ShareAlike 4.0 International License</a>.
<!-- ABOUT MMC START -->Makers Making Change is a program of Neil Squire, a Canadian non-profit that uses technology, knowledge, and passion to empower people with disabilities.
Makers Making Change leverages the capacity of community based Makers, Disability Professionals and Volunteers to develop and deliver affordable Open Source Assistive Technologies.
For technical questions, to get involved, or to share your experience we encourage you to visit our website or contact us.
<!-- ABOUT MMC END -->Imported into the CommunityCAD Archive with attribution preserved. All rights remain with the original author under the stated license.
docs/Small_Button_Mount_UserGuide_v0.1.pdf
v0.1 | MAY 2020 PAMS: Small Button Mount Uy Makers Making ANeil Squire Pro; USER GUIDE -_ Introduction Attaching Switch — Cable Tie The Small Button Mount is a solution for positioning 1. Attach button to mount using 3 cable ties (at small switches on a flat surface like a desk or table. It least…
View full datasheet →docs/Small_Button_Mount_BOM_v0.1.pdf
PAMS Small Buttom Mount: BOM COTS Parts 3 8 8 2 3 5 . BS > x 3 e€ 2686 &6 5 g rd £2 ¢ze sg 8 PBS# Name Source Part Number Qty 8 es S55 S 2 tink Elbow Home Depot 6 112 672 1112 6 6.72 https://www.homedepot.ca/product/nibco-1-2-in-pvc-schedule-40-90-degree-elbow/1000166792 PVC Piping Home Depot 0.1…
View full datasheet →docs/Small_Button_Mount_Changelog_v0.1.pdf
V0.1 | MAY 2020 PAMS: Small Button Mount Coy Makers Making Change CHANGELOG ANei Squire Program V0.1 Initial release. @)s © 2020 by Neil Squire. “Changelog” is licensed under the CC BY SA 4.0 License: http://creativecommons.org/licenses/by-sa/4.0 Design files available at…
View full datasheet →docs/PVC-Practical_Versatile_Cheap_Assistive_Technology_Supports.pdf
ATEN 1207 Mellonville Ave Sanford, FL 32771 u (407)688-2201 or (800)328-3678 SeMMNOLE COUNTY --- Acknowledgements Project Facilitators: First Edition Second Edition Device Designs: A‘ TEN Matt Hirn & Donna Jo Kazee Matthew Press ATEN would like to thank Matt Hin and Donna Jo Kazee for their…
View full datasheet →docs/Camera_Quick_Clamp_Checklist_v0.1.pdf
V0.1 | MAY 2020 PAMS: Camera Quick Clamp @3 Makers Making MAKER CHECKLIST ANei Squire Program To-do Acquire the off-the-shelf components 3D print the 3D printed components Assemble the Quick Clamp Clean and disinfect the Quick Clamp Package the Quick Clamp in a sealed bag Print the User Guide…
View full datasheet →docs/LipSync_Desk_Mount_Changelog_v0.2.pdf
V0.2 | MAY 2020 PAMS: LipSync Desk Mount Ch Mae Making CHANGELOG ANet Squire Progam V0.2 Changed name from original to fit into PAMS V0.1 Initial release. [G5) y-sa © 2020 by Neil Squire. “Changelog” is licensed under the CC BY SA 4.0 License: http://creativecommons.org/licenses/by-sa/4.0 Design…
View full datasheet →docs/LipSync_Desk_Mount_UserGuide_v0.2.pdf
V0.2 | MAY 2020 PAMS: LipSync Desk Mount Uy Makers Making USER GUIDE Introduction The LipSync Desk Mount is a simple mounting solution for mounting the LipSync to a desk or table using a set of PVC piping components and C-clamps. Features ANeil Squire Program Attaching the LipSync LipSync…
View full datasheet →docs/Small_Button_Mount_Assembly_v0.1.pdf
v0.1 | MAY 2020 PAMS: Small Button Mount Cy Makers Making ASSEMBLY GUIDE ANeiSqir Program --- V0.1 | MAY 2020 PAMS: Small Button Mount Cy Makers Making ASSEMBLY GUIDE ANeil Squire Program PARTS ID Description QTy 1 | PVC Elbow 90 deg, %” 2 | PVC Pipe, %”, 30 mm length 3 | PVC Pipe, %”, 30 mm OR 70…
View full datasheet →docs/Camera_Quick_Clamp_Assembly_v0.1.pdf
v0.1 | MAY 2020 PAMS: Camera Quick Clamp ¢ Makers Making ASSEMBLY GUIDE ANE Squire Program epevss | --- v0.1 | MAY 2020 PAMS: Camera Quick Clamp Cy Makers Making ASSEMBLY GUIDE AN Squire Program PARTS 5 3 Description Main Body, 3D printed Secondary Body, 3D printed Lever handle, 3D printed Latch…
View full datasheet →docs/Camera_Quick_Clamp_UserGuide_V0.1.pdf
V0.1 | MAY 2020 PAMS: Camera Quick Clamp Uy Makers Making ANeil Squire Program USER GUIDE Introduction Usage The Camera Quick Clamp is an 3D printed adapter for 1. Form the quick clamp around the PVC piping. attaching an assistive device to a section of 1/2 inch = diameter PVC piping. The clamp…
View full datasheet →docs/LipSync_Desk_Mount_Assembly_v0.2.pdf
V0.2 | MAY 2020 PAMS: LipSync Desk Mount ¢ Makers Making ASSEMBLY GUIDE A So | & S --- V0.2 | MAY 2020 PAMS: LipSync Desk Mount Cy Makers Making ASSEMBLY GUIDE ANeil Squire Program PARTS 2 Qe ic | ID | Description ary PVC Pipe, %”, 25 mm length PVC Pipe, %”, 30 mm length PVC Pipe, %”, 60 mm - xx…
View full datasheet →docs/LipSync_Desk_Mount_BOM_v0.2.pdf
Lipsync PVC Mounting Kit: BOM COTS Parts PBS # Name Union Straight Adapter, Female Soc x Female Threaded Straight Adapter, Female Soc x Male Threaded Tee Tee Sx Sx FIPT Elbow PVC Piping C-Clamp 2 in Source Home Depot Home Depot Home Depot Home Depot Home Depot Home Depot Home Depot Home Depot Part…
View full datasheet →docs/LipSync_Desk_Mount_Checklist_v0.2.pdf
V0.1 | MAY 2020 PAMS: LipSync Desk Mount Cy Makers Making Change MAKER CHECKLIST ANei Squire Program To-do Acquire the off-the-shelf components Assemble the LipSync Desk Mount Clean and disinfect the LipSync Desk Mount Package the LipSync Desk Mount in a sealed bag Print the User Guide Items to…
View full datasheet →docs/Small_Button_Mount_Checklist_v0.1.pdf
V0.1 | MAY 2020 PAMS: Small Button Mount Uy Makers Making Change MAKER CHECKLIST ANE Squire Program To-do Acquire the off-the-shelf components Assemble the Small Button Mount Clean and disinfect the Small Button Mount Package the Small Button Mount in a sealed bag Print the User Guide Items to…
