3D models of Chery MX keycaps
Overview
cherry-mx-keycaps
:warning: This is the thin-walled version of the keys which are more representative of the injected molded parts. For the thick-walled version of keys, which are better suited for machining out of material like wood, visit the thick-walled branch.
This repo contains 3D models of Cherry MX keycaps; widths included 1x1 through 1x2.5 for rows R1 through R4.
Dimensions were based off of those provided on the wasdkeyboards site as well as manualy checking them with calipers.

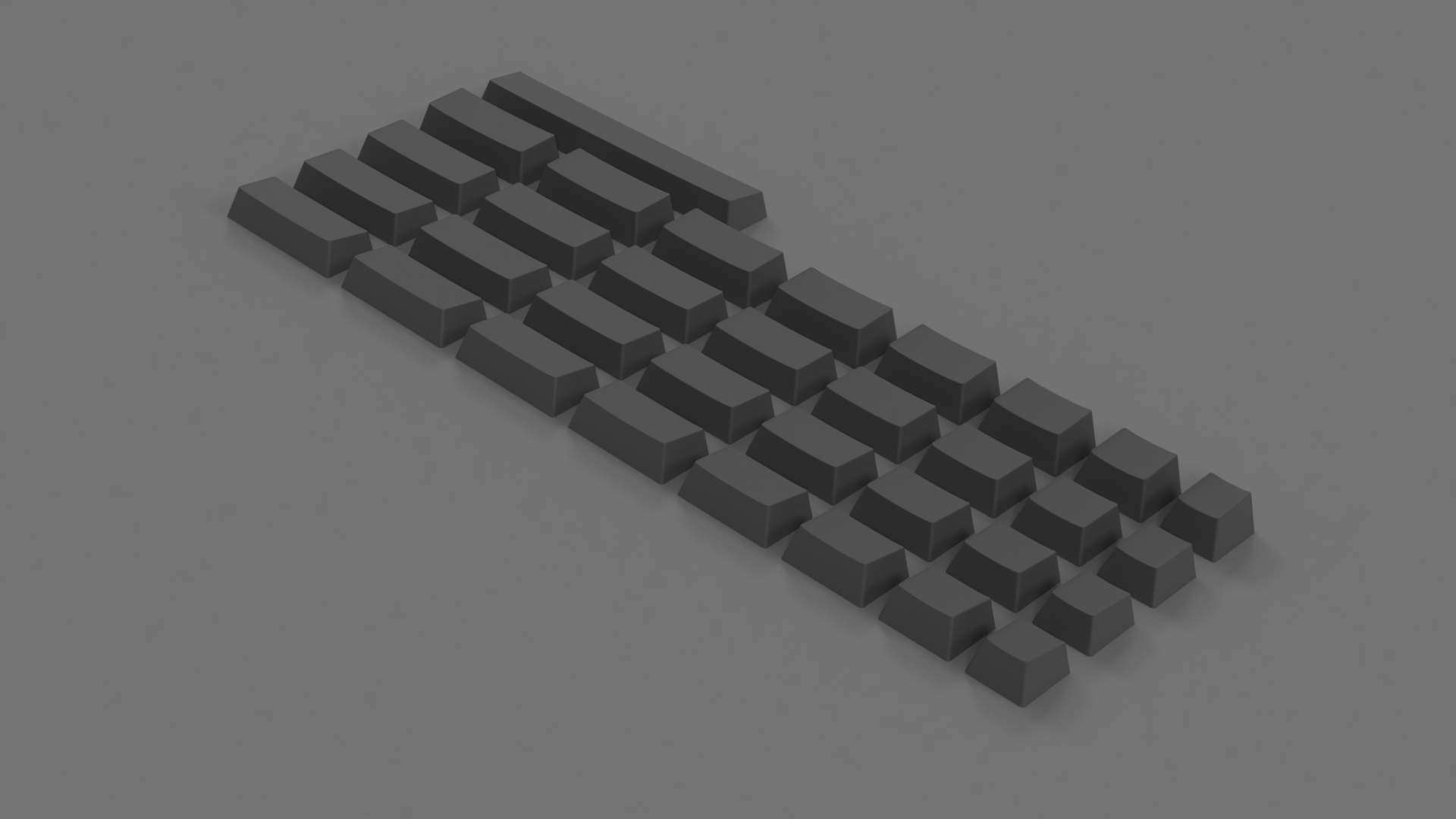

The single .step file located in STEP directory contains all the keys shown below; the STL directory contains files for each individual key for use in 3D printing (saved with medium refinement).
Files in this package
- CAD source: Cherry MX keycaps.step
- Exports: 1x1.75 R3.stl, 1x2 R3.stl, 1x2 R4.stl, 1x2.25 R3.stl, 1x2.25 R4.stl, 1x2.5 R4.stl, 1x2.75 R3.stl, 1x2.75 R4.stl, 1x6.25 R1.stl, 1x6.25 R2.stl, 1x6.25 R3.stl, 1x6.25 R4.stl (+24 more)
- Images: profile_r1_2.png, profile_r2_1.png, profile_r3_1.png, profile_r4_1.png, render-bottom.png, render.png
Source & license
- Original author: ConstantinoSchillebeeckx
- Source repository: https://github.com/ConstantinoSchillebeeckx/cherry-mx-keycaps
- License: MIT
Imported into the CommunityCAD Archive with attribution preserved. All rights remain with the original author under the stated license.
