BGA-169 11.0x11.0mm Layout13x13 P0.8mm Ball0.5mm Pad0.4mm NSMD

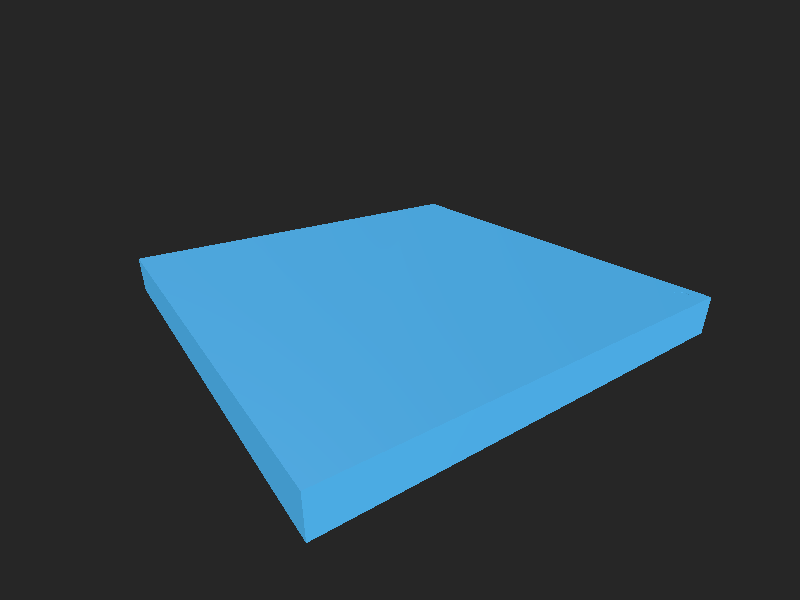

Package BGA — 3D model from the official KiCad component library.

Overview

BGA-169_11.0x11.0mm_Layout13x13_P0.8mm_Ball0.5mm_Pad0.4mm_NSMD.step is part of the KiCad 3D model library, a community-maintained collection of STEP/VRML models for electronic components used in PCB design.

Files

• CAD: BGA-169_11.0x11.0mm_Layout13x13_P0.8mm_Ball0.5mm_Pad0.4mm_NSMD.step (STEP)

---

Source & license

• Original author: KiCad Libraries Team
• Source: https://github.com/KiCad/kicad-packages3D/blob/master/Package_BGA.3dshapes/BGA-169_11.0x11.0mm_Layout13x13_P0.8mm_Ball0.5mm_Pad0.4mm_NSMD.step
• License: CC-BY-SA-4.0 (with the KiCad library exception)
