BGA-100 6.0x6.0mm Layout11x11 P0.5mm Ball0.3mm Pad0.25mm NSMD

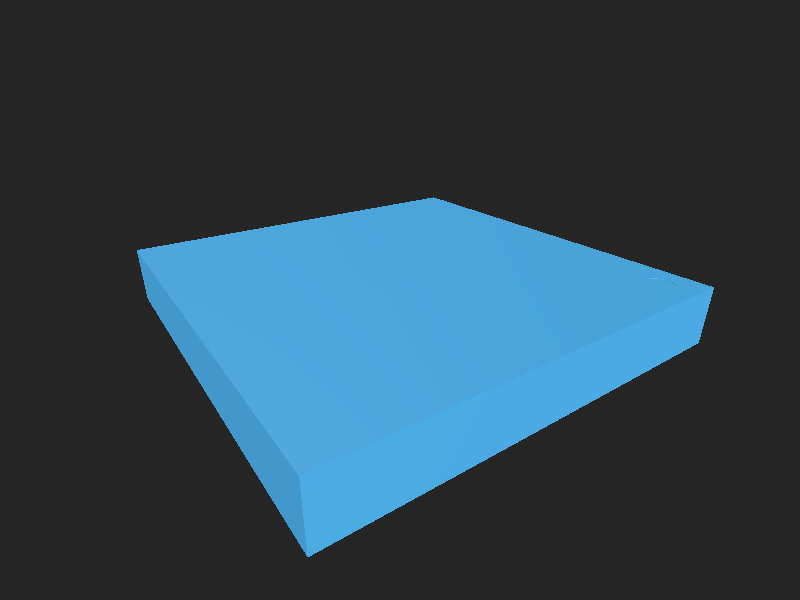

Package BGA — 3D model from the official KiCad component library.

Overview

BGA-100_6.0x6.0mm_Layout11x11_P0.5mm_Ball0.3mm_Pad0.25mm_NSMD.step is part of the KiCad 3D model library, a community-maintained collection of STEP/VRML models for electronic components used in PCB design.

Files

• CAD: BGA-100_6.0x6.0mm_Layout11x11_P0.5mm_Ball0.3mm_Pad0.25mm_NSMD.step (STEP)

---

Source & license

• Original author: KiCad Libraries Team
• Source: https://github.com/KiCad/kicad-packages3D/blob/master/Package_BGA.3dshapes/BGA-100_6.0x6.0mm_Layout11x11_P0.5mm_Ball0.3mm_Pad0.25mm_NSMD.step
• License: CC-BY-SA-4.0 (with the KiCad library exception)
