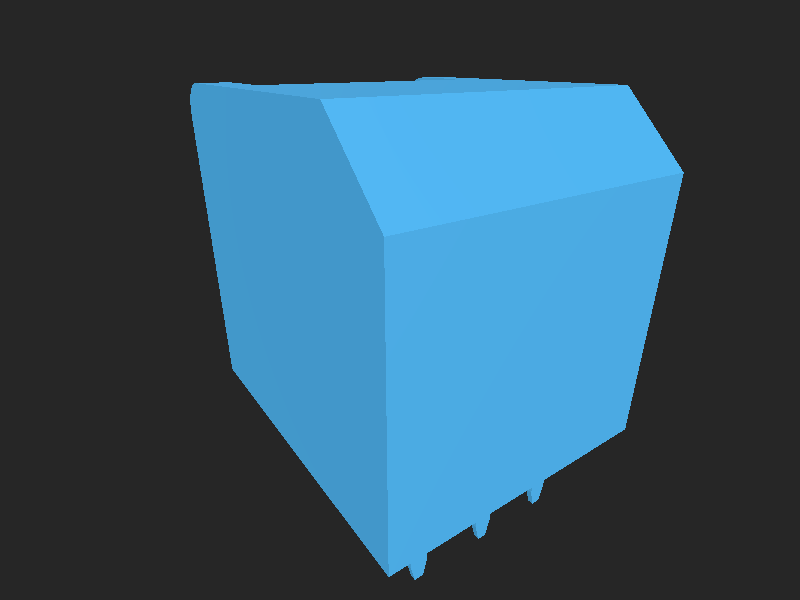

SW DIP SPSTx03 Piano 10.8x9.18mm W7.62mm P2.54mm

Button Switch THT — 3D model from the official KiCad component library.

Overview

SW_DIP_SPSTx03_Piano_10.8x9.18mm_W7.62mm_P2.54mm.step is part of the KiCad 3D model library, a community-maintained collection of STEP/VRML models for electronic components used in PCB design.

Files

• CAD: SW_DIP_SPSTx03_Piano_10.8x9.18mm_W7.62mm_P2.54mm.step (STEP)

---

Source & license

• Original author: KiCad Libraries Team
• Source: https://github.com/KiCad/kicad-packages3D/blob/master/Button_Switch_THT.3dshapes/SW_DIP_SPSTx03_Piano_10.8x9.18mm_W7.62mm_P2.54mm.step
• License: CC-BY-SA-4.0 (with the KiCad library exception)
