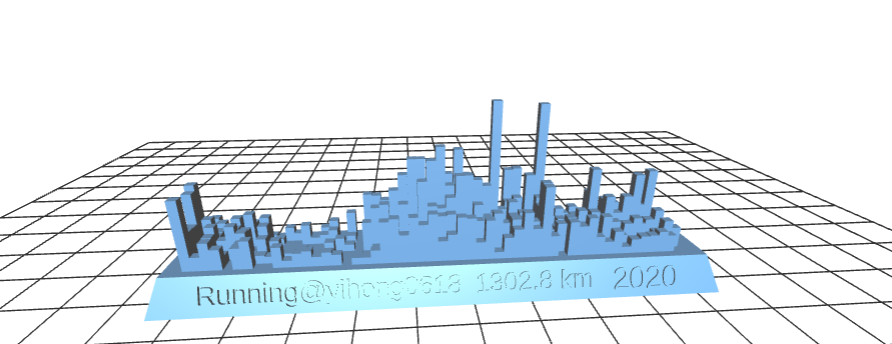

README image

Running Skyline

Generate a 3D Skyline in STL format from your running App

Overview

Running_skyline

Generate a 3D Skyline in STL format and from Strava or GPX image

Installation

  1. Make sure your python >= 3.6
  2. pip install -r requirements.txt
  3. Install OpenSCAD and ensure that openSCAD executable

How to use

You have two ways to use

  • From strava
Get your Strava auth

  1. Sign in/Sign up Strava account

  2. Open after successful Signin Strava Developers -> Create & Manage Your App

  3. Create My API Application: Enter the following information


My API Application Created successfully：


  1. Use the link below to request all permissions: Replace ${your_id} in the link with My API Application Client ID
https://www.strava.com/oauth/authorize?client_id=${your_id}&response_type=code&redirect_uri=http://localhost/exchange_token&approval_prompt=force&scope=read_all,profile:read_all,activity:read_all,profile:write,activity:write

get_all_permissions

  1. Get the code value in the link

example：

http://localhost/exchange_token?state=&code=1dab37edd9970971fb502c9efdd087f4f3471e6e&scope=read,activity:write,activity:read_all,profile:write,profile:read_all,read_all

code value：

1dab37edd9970971fb502c9efdd087f4f3471e6

get_code

  1. Use Client_id、Client_secret、Code get refresch_token: Execute in Terminal/iTerm
curl -X POST https://www.strava.com/oauth/token \
-F client_id=${Your Client ID} \
-F client_secret=${Your Client Secret} \
-F code=${Your Code} \
-F grant_type=authorization_code

example：

curl -X POST https://www.strava.com/oauth/token \
-F client_id=12345 \
-F client_secret=b21******d0bfb377998ed1ac3b0 \
-F code=d09******b58abface48003 \
-F grant_type=authorization_code

get_refresch_token

use this command line to generate stl file

 python3 skyline.py --type strava --client_id xxxxxx --client_secret xxxx --refresh_token xxxxxx --year {year} --runner {your_name}
  • From GPX

You can generate your running gpx from my other repo -- running_page than copy the whole gpx files to GPX_DIR

use this command line to generate stl file

python3 skyline.py --type gpx --year {year} --runner {your_name}

Please make sure your name length < 10

example

Contribution

  • Any Issues PR welcome.

Before submitting PR:

  • Format Python code with Black

Special thanks

Show


Files in this package

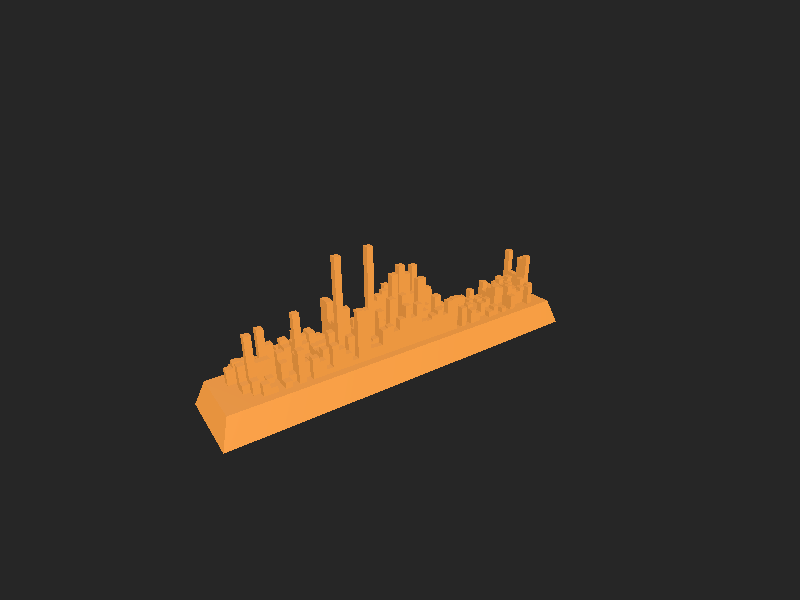

  • CAD source: running_yihong0618_2020.stl
