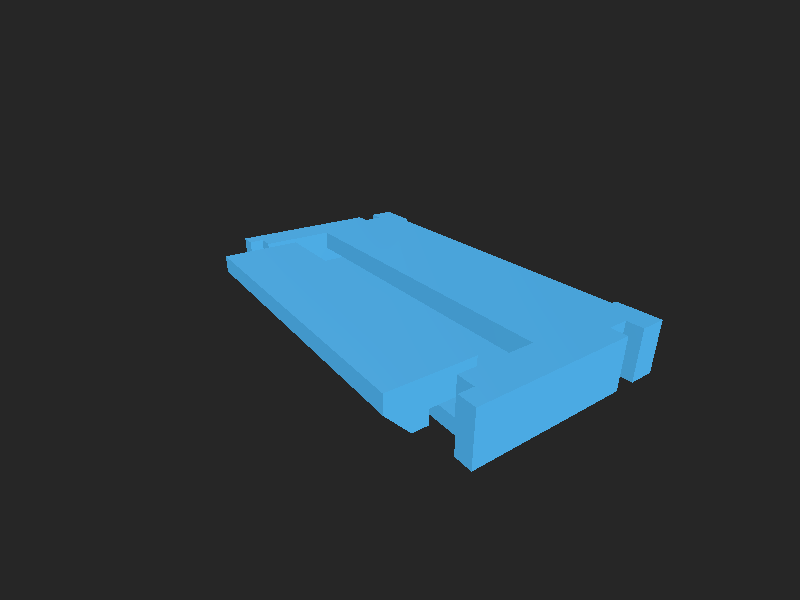

Molex 502250-1791 2Rows-17Pins-1MP P0.60mm Horizontal

Connector FFC-FPC — 3D model from the official KiCad component library.

Overview

Molex_502250-1791_2Rows-17Pins-1MP_P0.60mm_Horizontal.step is part of the KiCad 3D model library, a community-maintained collection of STEP/VRML models for electronic components used in PCB design.

Files

• CAD: Molex_502250-1791_2Rows-17Pins-1MP_P0.60mm_Horizontal.step (STEP)

---

Source & license

• Original author: KiCad Libraries Team
• Source: https://github.com/KiCad/kicad-packages3D/blob/master/Connector_FFC-FPC.3dshapes/Molex_502250-1791_2Rows-17Pins-1MP_P0.60mm_Horizontal.step
• License: CC-BY-SA-4.0 (with the KiCad library exception)
