Mitayi Pico D1

Open-Source RP2040 Microcontroller Development Board

Overview

Mitayi-Pico-D1

Mitayi-Pico-D1 is the first development board from CIRCUITSTATE Electronics. The board is based on the RP2040 microcontroller from Raspberry Pi and is designed after the official Raspberry Pi Pico board, but adds a few improvements over it. D1 is the first design variant of Mitayi-Pico. Mitayi-Pico is not pin-compatible with the official Raspberry Pi Pico. The schematic and PCB are designed with KiCad, an open-source EDA tool. All the design files of Mitayi-Pico are completely open-source and released under the MIT license.

Features & Differences

RP2040 dual-core, 133MHz ARM Cortex M0+ microcontroller.
Up to 16 MB Flash memory in SOIC-8 package.
USB-C for power and communication.
USB solder pads.
MIC5219 LDO with 3.3V, 500 mA output.
Power indication LED.
RESET button.
BOOTSEL button reconfigurable as GPIO input button.
Debug LED with GPIO solder jumper.
Breaks out all MCU GPIO pins.
EXP8 expansion connector in 2x4 2.54mm pin header. Breaks out SPI, UART and I2C.
3-pin SWD connector.
Uses 0402 or larger SMD packages.
Mitayi-Pico is not pin-compatible with the official Raspberry Pi Pico.
Same dimensions of 21 mm x 50 mm, with almost the same positions for mounting holes.
Completely open-source design made with KiCad 9.

Design

Parent Project: Mitayi-Pico
Variant: Mitayi-Pico-D1
Author: Vishnu Mohanan (@vishnumaiea)
Latest Revision: R0.6
Layer Count: 2
Thickness: 1 mm
Dimensions: 51 x 21 mm
EDA Tool: KiCad V9
License: MIT

Contributing

If you would like to contribute this project, you are welcome to post issues and feature requests on the Issues page. If you fork this project and created a new variant, you can let us know about it and get a unique identifier assigned for your project. The ID takes the following form.

Y<digit><letter><digit>

Y – Constant prefix.

<digit> – Digits from 0–9

<letter> – Characters from A–Z.

Examples:

Y1A1
Y1A2

References

Raspberry Pi Pico - Product Page

Files in this package

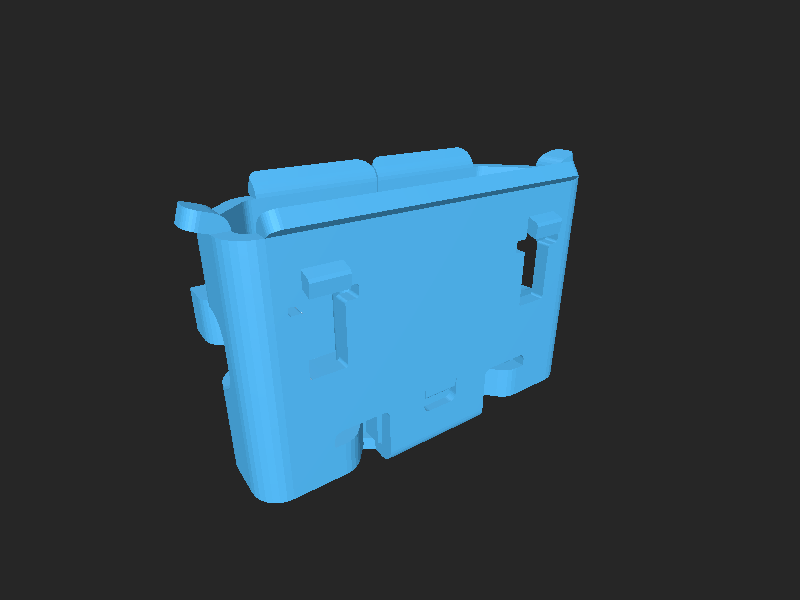

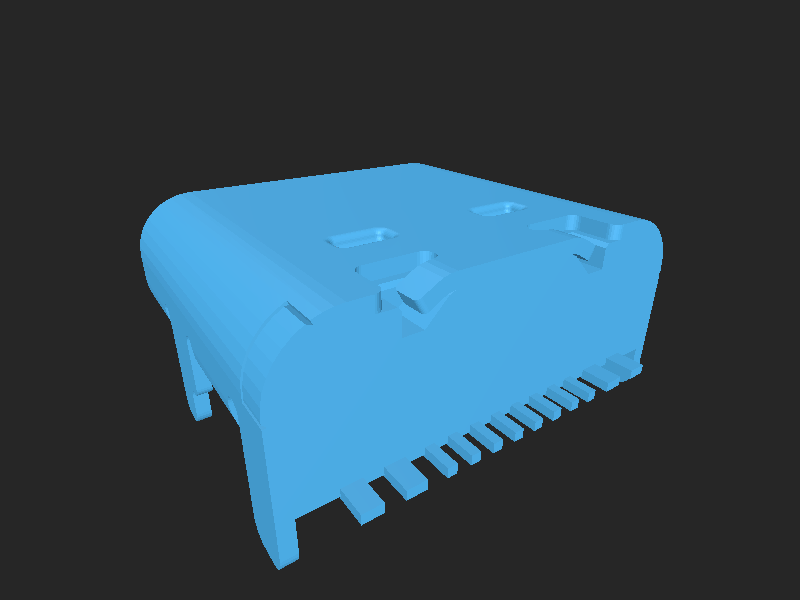

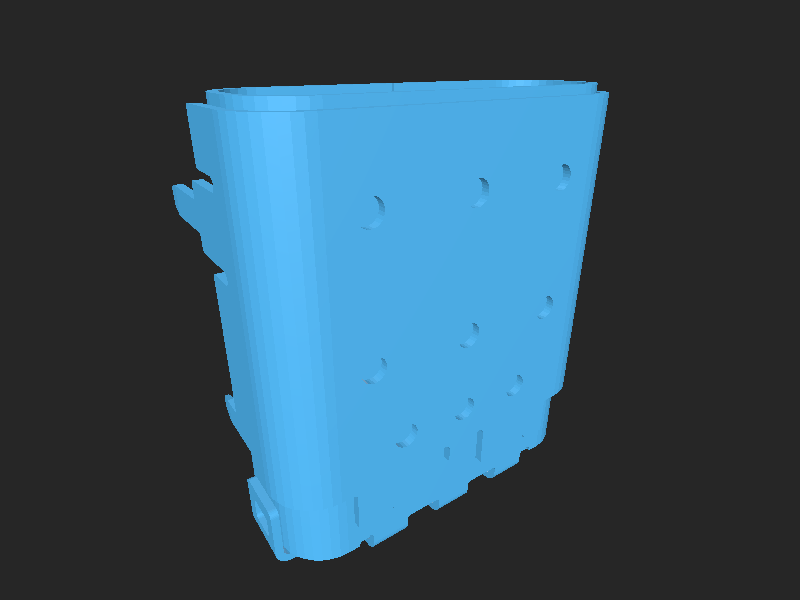

CAD source: Amphenol-USB-Tyep-C-Receptacle-12401598E4#2A.STEP, Amphenol-USB-Tyep-C-Receptacle-12401598E4#2A.STEP, C&K-Tactile-Switch-PTS820J20KPSMTRLFS.stp, C&K-Tactile-Switch-PTS820J20KPSMTRLFS.stp, Mitayi-Pico-D1-R0.6-STEP-27042025-1.step, Mitayi-Pico-RP2040-r0.4-STEP-23092022-01.step, Molex-Micro-USB-Receptacle-1050170001.stp, Molex-Micro-USB-Receptacle-1050170001.stp, USB_Receptacle_HRO_TYPE-C-31-M-12.step, USB_Receptacle_HRO_TYPE-C-31-M-12.step
Images: Mitayi-Pico-D1-R0.6-PCB-Left-27042025-1.png, Mitayi-Pico-D1-R0.6-PCB-Right-27042025-1.png, Mitayi-Pico-RP2040-PCBWay-Order-Details-01.png, Mitayi-Pico-RP2040-PCBWay-Order-Details-01.png, Mitayi-Pico-RP2040-PCBWay-Order-Details-01.png, Mitayi-Pico-RP2040-PCBWay-Order-Details-01.png, Mitayi-Pico-RP2040-PCBWay-Order-Details-01.png, Mitayi-Pico-RP2040-PCBWay-Order-Details-01.png, Mitayi-Pico-RP2040-r0.2-Bottom-01.png, Mitayi-Pico-RP2040-r0.2-Bottom-Populated-01.png, Mitayi-Pico-RP2040-r0.2-Top-01.png, Mitayi-Pico-RP2040-r0.2-Top-Populated-01.png
Documents: Mitayi-PCB-Image-01.pdf, Mitayi-Pico-RP2040-B_Courtyard.pdf, Mitayi-Pico-RP2040-B_Cu.pdf, Mitayi-Pico-RP2040-B_Fab.pdf, Mitayi-Pico-RP2040-B_Mask.pdf, Mitayi-Pico-RP2040-B_Paste.pdf, Mitayi-Pico-RP2040-B_Silkscreen.pdf, Mitayi-Pico-RP2040-Edge_Cuts.pdf, Mitayi-Pico-RP2040-F_Courtyard.pdf, Mitayi-Pico-RP2040-F_Cu.pdf, Mitayi-Pico-RP2040-F_Fab.pdf, Mitayi-Pico-RP2040-v0.2-Assembly-Drawing-01.pdf (+46 more)

Source & license

Original author: CIRCUITSTATE
Source repository: https://github.com/CIRCUITSTATE/Mitayi-Pico-D1
License: MIT

Imported into the CommunityCAD Archive with attribution preserved. All rights remain with the original author under the stated license.
