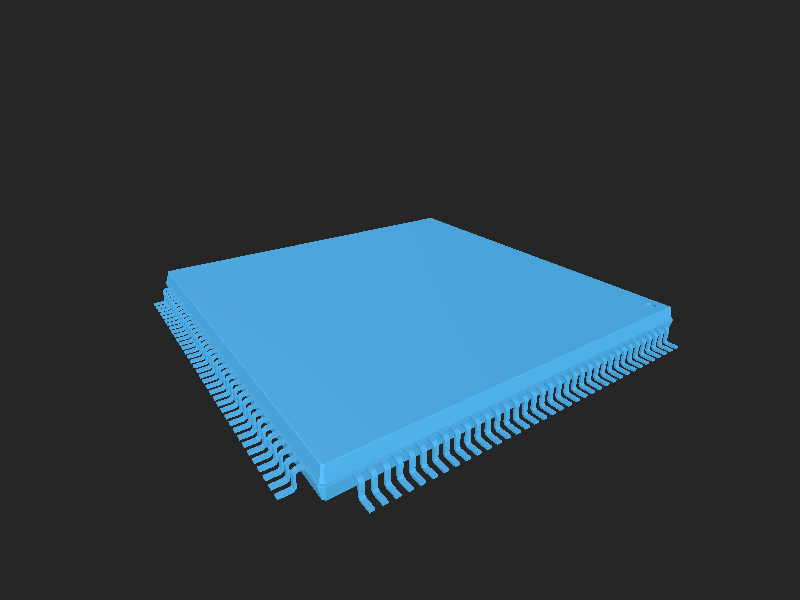

LQFP-144 20x20mm P0.5mm

Package QFP — 3D model from the official KiCad component library.

Overview

LQFP-144_20x20mm_P0.5mm.step is part of the KiCad 3D model library, a community-maintained collection of STEP/VRML models for electronic components used in PCB design.

Files

• CAD: LQFP-144_20x20mm_P0.5mm.step (STEP)

---

Source & license

• Original author: KiCad Libraries Team
• Source: https://github.com/KiCad/kicad-packages3D/blob/master/Package_QFP.3dshapes/LQFP-144_20x20mm_P0.5mm.step
• License: CC-BY-SA-4.0 (with the KiCad library exception)
