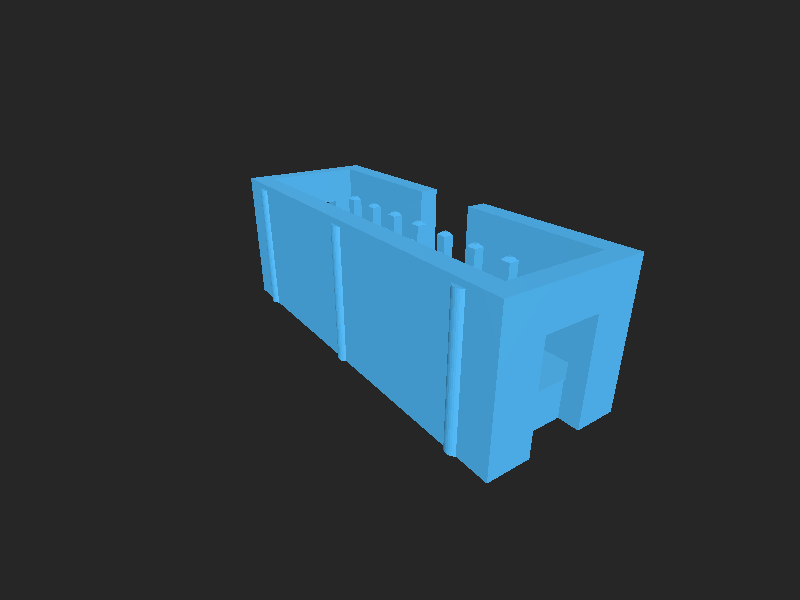

IDC-Header 2x07 P2.54mm Vertical

Connector IDC — 3D model from the official KiCad component library.

Overview

IDC-Header_2x07_P2.54mm_Vertical.step is part of the KiCad 3D model library, a community-maintained collection of STEP/VRML models for electronic components used in PCB design.

Files

• CAD: IDC-Header_2x07_P2.54mm_Vertical.step (STEP)

---

Source & license

• Original author: KiCad Libraries Team
• Source: https://github.com/KiCad/kicad-packages3D/blob/master/Connector_IDC.3dshapes/IDC-Header_2x07_P2.54mm_Vertical.step
• License: CC-BY-SA-4.0 (with the KiCad library exception)
