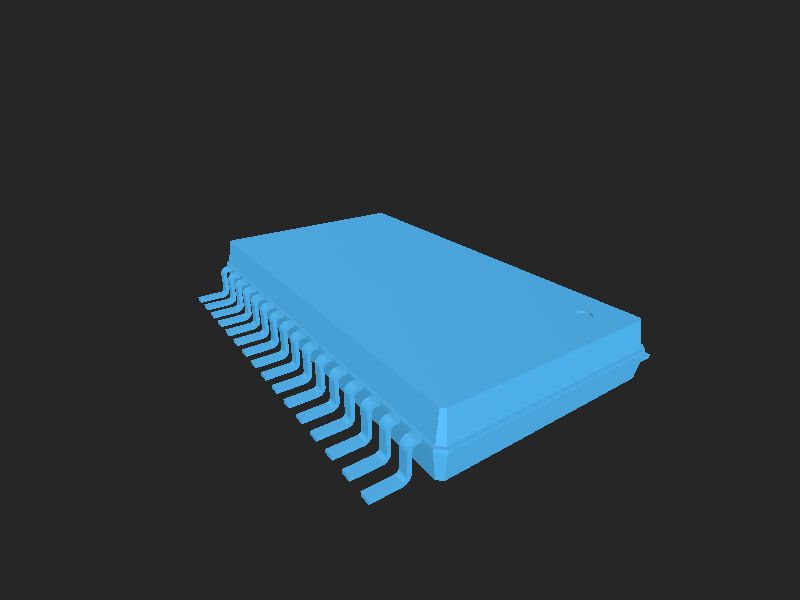

HTSSOP-32-1EP 6.1x11mm P0.65mm EP5.2x11mm

Package SO — 3D model from the official KiCad component library.

Overview

HTSSOP-32-1EP_6.1x11mm_P0.65mm_EP5.2x11mm.step is part of the KiCad 3D model library, a community-maintained collection of STEP/VRML models for electronic components used in PCB design.

Files

• CAD: HTSSOP-32-1EP_6.1x11mm_P0.65mm_EP5.2x11mm.step (STEP)

---

Source & license

• Original author: KiCad Libraries Team
• Source: https://github.com/KiCad/kicad-packages3D/blob/master/Package_SO.3dshapes/HTSSOP-32-1EP_6.1x11mm_P0.65mm_EP5.2x11mm.step
• License: CC-BY-SA-4.0 (with the KiCad library exception)
