DSUB-15-HD Male Horizontal P2.29x1.98mm EdgePinOffset3.03mm Housed MountingHolesOffset4.94mm

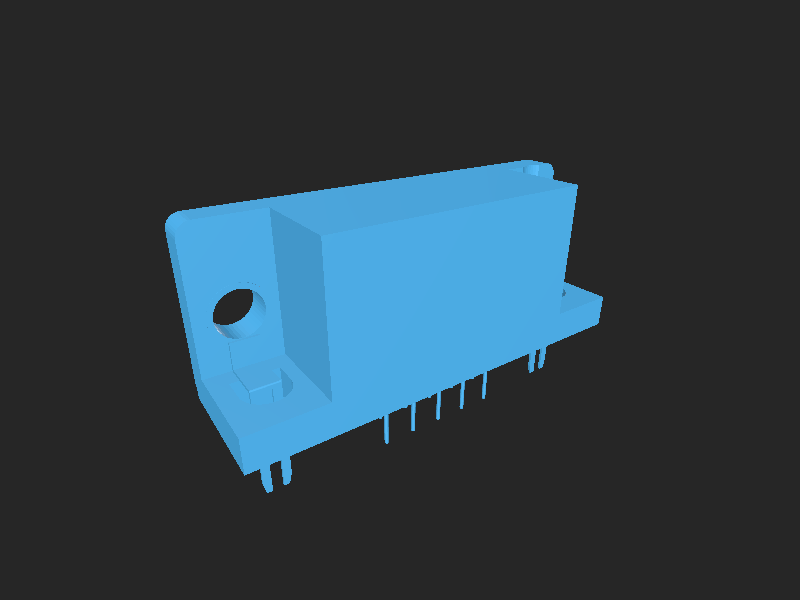

Connector Dsub — 3D model from the official KiCad component library.

Overview

DSUB-15-HD_Male_Horizontal_P2.29x1.98mm_EdgePinOffset3.03mm_Housed_MountingHolesOffset4.94mm.step is part of the KiCad 3D model library, a community-maintained collection of STEP/VRML models for electronic components used in PCB design.

Files

• CAD: DSUB-15-HD_Male_Horizontal_P2.29x1.98mm_EdgePinOffset3.03mm_Housed_MountingHolesOffset4.94mm.step (STEP)

---

Source & license

• Original author: KiCad Libraries Team
• Source: https://github.com/KiCad/kicad-packages3D/blob/master/Connector_Dsub.3dshapes/DSUB-15-HD_Male_Horizontal_P2.29x1.98mm_EdgePinOffset3.03mm_Housed_MountingHolesOffset4.94mm.step
• License: CC-BY-SA-4.0 (with the KiCad library exception)
